The Complete Guide to Water-Soluble PVA Film for Laundry Detergent Pods: Materials, Manufacturing, and Formulation

In the rapidly evolving world of sustainable packaging, few innovations have made as significant an impact as water-soluble polyvinyl alcohol (PVA) film—the essential material behind laundry detergent pods, dishwasher tablets, and single-dose packaging for household and industrial chemicals. As a plastic film manufacturer, understanding the intricate science behind these remarkable materials is crucial for producing high-quality products that meet the demanding requirements of modern consumers.

The global water-soluble film market was valued at approximately USD 414.6 million in 2024 and is projected to reach USD 632.3 million by 2033, growing at a compound annual growth rate (CAGR) of 4.56% . This growth is driven by increasing demand for sustainable packaging, the convenience of unit-dose formats, and stringent environmental regulations targeting single-use plastics .

At Shengfeng , we specialize in manufacturing high-performance water-soluble PVA films engineered for laundry detergent pods and other single-dose applications. In this comprehensive guide, we'll explore the raw materials, formulation science, manufacturing processes, and key performance characteristics that define quality water-soluble films.

Understanding Water-Soluble PVA Film: The Basics

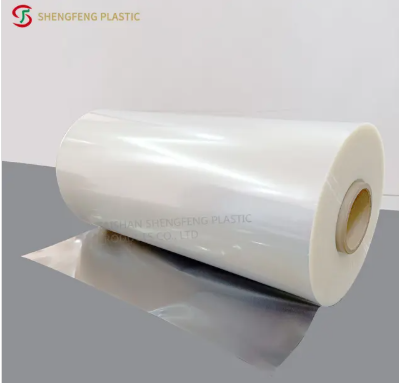

Water-soluble polyvinyl alcohol (PVA or PVOH) film is a synthetic polymer material that dissolves completely when exposed to water. Unlike conventional plastic films designed for durability and water resistance, water-soluble films are specifically engineered to break down in aqueous environments—making them ideal for packaging products intended for water-based applications .

Primary Applications

• Laundry detergent pods and dishwasher tablets

• Agrochemical packaging (pesticides, fertilizers, herbicides)

• Water treatment chemical packaging

• Pharmaceutical unit-dose packaging

• Embroidery backing and hospital laundry bags

Key Benefits

Water-soluble films offer numerous advantages over conventional packaging:

• Precise dosing—pre-measured quantities eliminate guesswork and waste

• User safety—no direct contact with potentially hazardous chemicals

• Environmental sustainability—biodegradable and dissolves completely in water

• Space efficiency—compact unit-dose formats reduce storage requirements

• Reduced plastic waste—eliminates the need for rigid plastic containers

Raw Materials: The Building Blocks of Water-Soluble Film

High-quality water-soluble film begins with carefully selected raw materials. The primary component is polyvinyl alcohol (PVA/PVOH) , a synthetic polymer derived from polyvinyl acetate through hydrolysis . PVA is chosen for its excellent film-forming properties, water solubility, and biodegradability.

1. Polyvinyl Alcohol (PVA) Resin

PVA is the backbone of water-soluble films. Its properties are determined by two critical parameters:

Degree of Hydrolysis

• Partially hydrolyzed PVA (87-89%) : Dissolves readily in cold water—ideal for consumer laundry applications

• Fully hydrolyzed PVA (98-99%) : Requires higher water temperatures for dissolution—suitable for industrial applications or hot-water wash cycles

Molecular Weight

• Lower molecular weight : Faster dissolution, lower mechanical strength

• Higher molecular weight : Greater tensile strength and durability, slower dissolution

According to technical specifications, high-quality PVA films for detergent pods typically use resins with 87-98% hydrolysis to balance water solubility with mechanical integrity .

2. Plasticizers

Pure PVA is brittle and difficult to process. Plasticizers are essential additives that:

• Increase film flexibility and softness

• Reduce crystallinity and improve processability

• Enhance elongation and reduce brittleness

Common plasticizers include :

• Glycerol (glycerin) —the most widely used plasticizer for PVA systems

• Polyethylene glycol (PEG) —improves flexibility and low-temperature performance

• Propylene glycol —alternative plasticizer for specific formulations

• Sorbitol —sugar alcohol plasticizer for enhanced compatibility

Research indicates that optimal plasticizer content typically ranges from 15-25% of the total formulation, depending on desired film properties .

3. Processing Aids and Modifiers

To achieve consistent quality and specific performance characteristics, manufacturers incorporate various additives:

Surfactants

• Improve wetting during solution casting

• Enhance film release from casting surfaces

• Modify surface tension for better printability

Anti-blocking Agents

• Prevent film layers from sticking together during storage

• Common materials include fine silica or starch derivatives

Nucleating Agents

• Control crystallinity during film formation

• Water-soluble salts (e.g., sodium sulfate) help maintain plasticizer dispersion

Salt Compounds

• Sodium sulfate is often incorporated (up to 20% in some formulations) to modify solubility and mechanical properties

4. Starch and Biopolymer Blends

To enhance biodegradability and reduce costs, many manufacturers incorporate natural polymers:

• Starch—renewable, biodegradable, and cost-effective

• Carrageenan—seaweed-derived polymer that improves mechanical properties

Studies show that starch-PVA blends can achieve excellent film-forming properties while maintaining water solubility . However, formulation must be carefully optimized as starch content affects dissolution rate and mechanical strength.

The Science of Formulation: Achieving Optimal Performance

Creating a successful water-soluble film requires balancing multiple, sometimes competing, properties. The ideal formulation must:

1. Balance Solubility with Stability

The film must remain stable during storage—resisting humidity, mechanical stress, and chemical interaction with the packaged product—yet dissolve rapidly when introduced to water .

Key considerations:

• Cold-water solubility—consumer laundry pods require dissolution in 5-15 seconds at 20-40°C

• Humidity resistance—films must survive storage in varying environmental conditions without becoming tacky or brittle

• Chemical compatibility—resistance to aggressive surfactants, high pH, and enzymes in detergent formulations

2. Optimize Mechanical Properties

Water-soluble films must withstand:

• High-speed automated filling and sealing equipment

• Transportation and handling stresses

• Compression during stacking and display

Target specifications typically include:

• Tensile strength ≥ 40 MPa

• Elongation at break : 150-400% depending on plasticizer content

• Film thickness : 50-75 microns for standard detergent pods

3. Ensure Biodegradability

High-quality PVA films are inherently biodegradable under aerobic conditions, breaking down into water, carbon dioxide, and biomass through microbial action in wastewater treatment plants .

Certification standards (e.g., OK biodegradable WATER®, OECD 301) verify environmental performance .

4. Formulation Example

Research using orthogonal analysis identified an optimized formulation for blown PVA film achieving complete dissolution in 60 seconds:

• 44% PVA 0588 (partially hydrolyzed grade)

• 25% Glycerol (plasticizer)

• 10% Polyethylene glycol (secondary plasticizer)

• 1% Polyether (processing aid)

• 20% Sodium sulfate (nucleating agent/solubility modifier)

Manufacturing Processes for Water-Soluble Film

Water-soluble films can be produced through several methods, each with distinct advantages.

1. Solution Casting

The most common method for high-quality water-soluble films :

Process steps:

1. PVA resin, plasticizers, and additives are dissolved in water to create a 18-20% solids solution

2. The solution is filtered and degassed to remove bubbles

3. Liquid is cast onto a polished stainless steel belt or drum

4. Controlled drying evaporates water, forming a solid film

5. Film is peeled from the belt, trimmed, and wound into rolls

Advantages:

• Exceptional thickness uniformity

• Optical clarity

• Minimal orientation—balanced properties

• Suitable for thin films (20-100 microns)

Disadvantages:

• Slower production speeds (typically 4-7 meters/minute)

• Higher energy costs for drying

• Larger facility footprint

2. Blown Film Extrusion

An alternative method gaining popularity for higher volume production :

Process steps:

1. Plasticized PVA compound is fed into an extruder

2. Melted polymer is forced through a circular die

3. Air inflates the tube into a bubble

4. Bubble collapses and film is wound

Advantages:

• Higher production speeds

• Lower energy costs

• Biaxial orientation improves strength

Challenges:

• Requires specialized equipment due to PVA's thermal sensitivity

• Narrow processing window

• More difficult thickness control

3. Co-extrusion

For premium applications, multilayer films combine different formulations :

• Inner layer optimized for chemical resistance to detergent

• Core layer provides mechanical strength

• Outer layer modified for sealing and handling

Co-extruded films offer superior barrier properties and extended shelf life but require more complex manufacturing .

Quality Control and Testing

Rigorous quality control ensures consistent performance:

Critical Tests

Compatibility Testing

Before launching a new detergent pod product, manufacturers must conduct rigorous compatibility testing between film and detergent formulation . Parameters such as plasticizer type, degree of hydrolysis, and molecular weight must match the detergent's chemical profile to ensure long-term stability.

Environmental Considerations

Water-soluble films represent a significant advance in sustainable packaging:

Biodegradation Mechanism

PVA undergoes two-stage degradation :

1. Dissolution—film dissolves in water, creating a colloidal solution

2. Biodegradation—microorganisms (Pseudomonas species) enzymatically break down PVA into CO₂ and H₂O

Environmental Certifications

Leading films now carry certifications such as:

• OK biodegradable WATER® (TÜV AUSTRIA)

• OECD 301 biodegradability compliance

Why Choose Shengfeng ?

At Shengfeng , we combine decades of plastic film manufacturing expertise with cutting-edge polymer science to deliver water-soluble PVA films that exceed industry standards.

Our capabilities include:

• Custom formulation development for specific detergent chemistries

• Multiple film grades: cold-water soluble, hot-water soluble, high-durability

• Rigorous quality control with full traceability

• Sustainable manufacturing practices

• Technical support for sealing and packaging integration

Conclusion

Water-soluble PVA film for laundry detergent pods represents a sophisticated intersection of polymer chemistry, materials science, and manufacturing precision. From the careful selection of PVA resins and plasticizers to the optimization of dissolution rates and mechanical properties, every aspect of formulation impacts the final product's performance.

As the market for sustainable, convenient packaging continues to expand, manufacturers who master the science of water-soluble films will be well-positioned to lead the industry.
